What is EBS?

  • EBS stands for Elastic Block Store.
  • EC2 is a virtual server in a cloud while EBS is a virtual disk in a cloud.
  • Amazon EBS allows you to create storage volumes and attach them to the EC2 instances.
  • Once the storage volume is created, you can create a file system on the top of these volumes, and then you can run a database, store the files, applications or you can even use them as a block device in some other way.
  • Amazon EBS volumes are placed in a specific availability zone, and they are automatically replicated to protect you from the failure of a single component.
  • EBS volume does not exist on one disk, it spreads across the Availability Zone. EBS volume is a disk which is attached to an EC2 instance.
  • EBS volume attached to the EC2 instance where windows or Linux is installed known as Root device of volume.

EBS Volume Types

AWS EBS

Amazon EBS provides two types of volume that differ in performance characteristics and price. EBS Volume types fall into two parts:

  • SSD-backed volumes
  • HDD-backed volumes

SSD

  • SSD stands for solid-state Drives.
  • In June 2014, SSD storage was introduced.
  • It is a general purpose storage.
  • It supports up to 4000 IOPS which is quite very high.
  • SSD storage is very high performing, but it is quite expensive as compared to HDD (Hard Disk Drive) storage.
  • SSD volume types are optimized for transactional workloads such as frequent read/write operations with small I/O size, where the performance attribute is IOPS.

AWS EBS

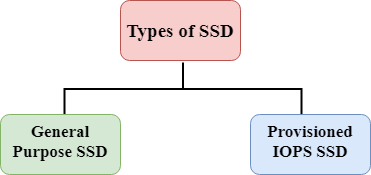

SSD is further classified into two parts:

  • General Purpose SSD
  • Provisioned IOPS SSD

General Purpose SSD

  • General Purpose SSD is also sometimes referred to as a GP2.
  • It is a General purpose SSD volume that balances both price and performance.
  • You can get a ratio of 3 IOPS per GB with up to 10,000 IOPS and the ability to burst up to 3000 IOPS for an extended period of time for volumes at 3334 GiB and above. For example, if you get less than 10,000 IOPS, then GP2 is preferable as it gives you the best performance and price.

Provisioned IOPS SSD

  • It is also referred to as IO1.
  • It is mainly used for high-performance applications such as intense applications, relational databases.
  • It is designed for I/O intensive applications such as large relational or NOSQL databases.
  • It is used when you require more than 10,000 IOPS.

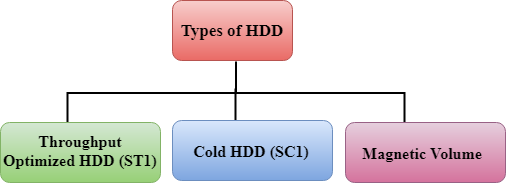

HDD

  • It stands for Hard Disk Drive.
  • HDD based storage was introduced in 2008.
  • The size of the HDD based storage could be between 1 GB to 1TB.
  • It can support up to 100 IOPS which is very low.

AWS EBS

Throughput Optimized HDD (st1)

  • It is also referred to as ST1.
  • Throughput Optimized HDD is a low-cost HDD designed for those applications that require higher throughput up to 500 MB/s.
  • It is useful for those applications that require the data to be frequently accessed.
  • It is used for Big data, Data warehouses, Log processing, etc.
  • It cannot be a boot volume, so it contains some additional volume. For example, if we have Windows server installed in a C: drive, then C drive cannot be a Throughput Optimized Hard disk, D: drive or some other drive could be a Throughput Optimized Hard disk.
  • The size of the Throughput Hard disk can be 500 GiB to 16 TiB.
  • It supports up to 500 IOPS.

Cold HDD (sc1)

  • It is also known as SC1.
  • It is the lowest cost storage designed for the applications where the workloads are infrequently accessed.
  • It is useful when data is rarely accessed.
  • It is mainly used for a File server.
  • It cannot be a boot volume.
  • The size of the Cold Hard disk can be 500 GiB to 16 TiB.
  • It supports up to 250 IOPS.

Magnetic Volume

  • It is the lowest cost storage per gigabyte of all EBS volume types.
  • It is ideal for the applications where the data is accessed infrequently
  • It is useful for applications where the lowest storage cost is important.
  • Magnetic volume is the only hard disk which is bootable. Therefore, we can say that it can be used as a boot volume.
